OLYMPIC
Used Olympic OMS36144-2 Hydraulic Lift Table
Images
Machine Information
Specifications

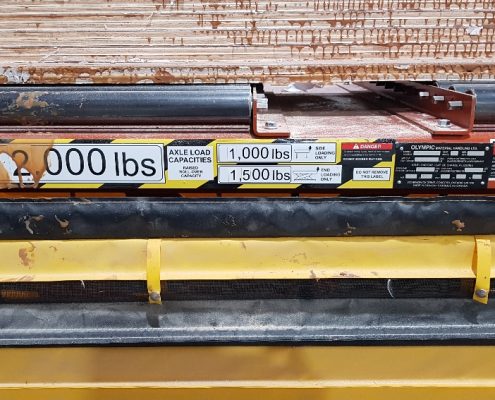

| Capacity: | 2,000 lbs, evenly distributed load |
| Platform: | 36” x 144” smooth plate with 3 lanes of gravity roller conveyors |
| 3 lanes x 39” BFP x 36” long with 1.9” diameter at 3” centers | |
| and 6 removeable tube stops – sockets on side of platform | |
| Base frame: | 36” x 128” |
| Lowered height | 18.75” |
| Raised height | 48.75” |
| Travel | 30” |
| Power pack | internal 1 HP 110V / 1PH / 60 Hz |
| Controls: | push button x 12 ft cable to hook on side of platform |
| Scissors | Constructed from profile cut steel |
| Cylinder | Solid ram style with hydraulic safety velocity fuse |
| Axle pins | 100,000 PSI yield strength chrome shafting |
| Pivot points | All with self lubricating bushings |
| Accordion bellows around base frame | |
| 4 swivel castors mounted underneath with 6” dia phenolic wheel sand floro lock on one end | |
| Maintenance blocks | |
Machine Details
