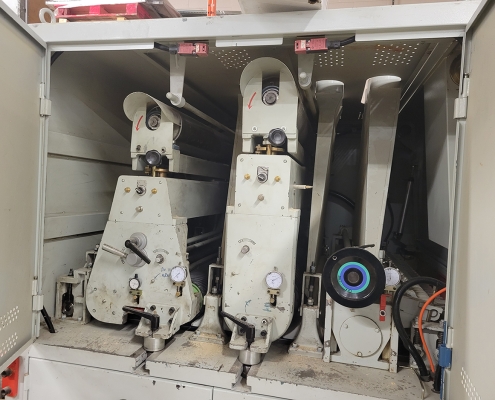

Head No. 1 Spiral Cutterhead

• Solid steel Cutterhead 6” diameter, 6 rows inserts
• Carbide knife inserts in spiral pattern for superior chip removal, minimum noise, and extremely smooth cutting effect
• 240 knives of 14x14mm x 2mm. Air wrench for knife change included
• Cutterhead can be raised or lowered by turning a handwheel. A graduated scale is provided to indicate the thickness adjustment
• Changing and rotating the knives is easily performed by opening the panel on the front of the machine and will open and close automatically by pneumatic cylinders. The cutterhead does not need to be removed from the machine.
• Sectional infeed pressure shoe, spring loaded

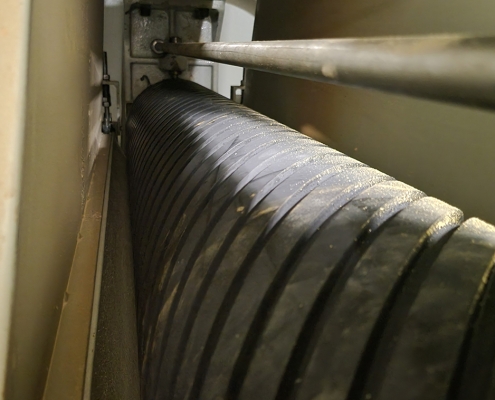

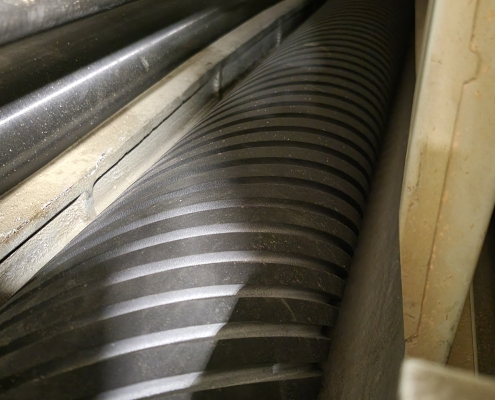

Head No. 2 Contact Drum

• 10” dia. rubber grooved contact roller for added durability and superior stock removal

Head No. 3 Combination Head

• 6 ¼” dia. rubber contact drum followed by 3” platen for superior finish
• The platen can be quickly removed for graphite and felt replacement


Sanding Belt Tracking

• Pneumatic belt tracking with reliable send & receive type sensors

Microcomputer with Digital Readout

• Table is raised and lowered by a digital controller

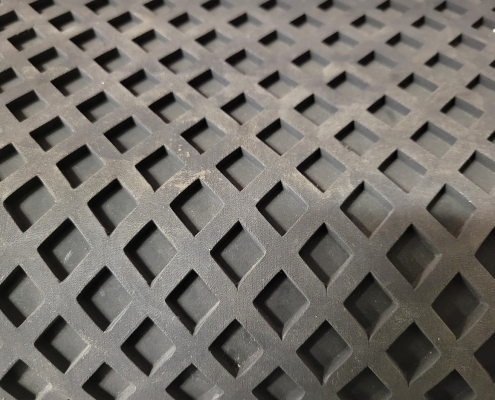

Conveyor Belt Tracking Control

• The conveyor belt is pneumatically controlled to effectively prevent the fed belt from tracking off to one side

Conveyor Variable Speed Unit

• The conveyor belt speed is controlled by inverter drive variable speed unit
• Feed speed can be varied as desired to suit all types of planing/sanding requirements
• Hour meter for maintenance control

Safety Features

• Emergency stops on front and rear of machine
• Safety push bar on infeed table
• Safety lever bar will shut down the machine and prevent damage caused by feeding over thickness material
• Full set of kickback fingers on cutterhead infeed for safety

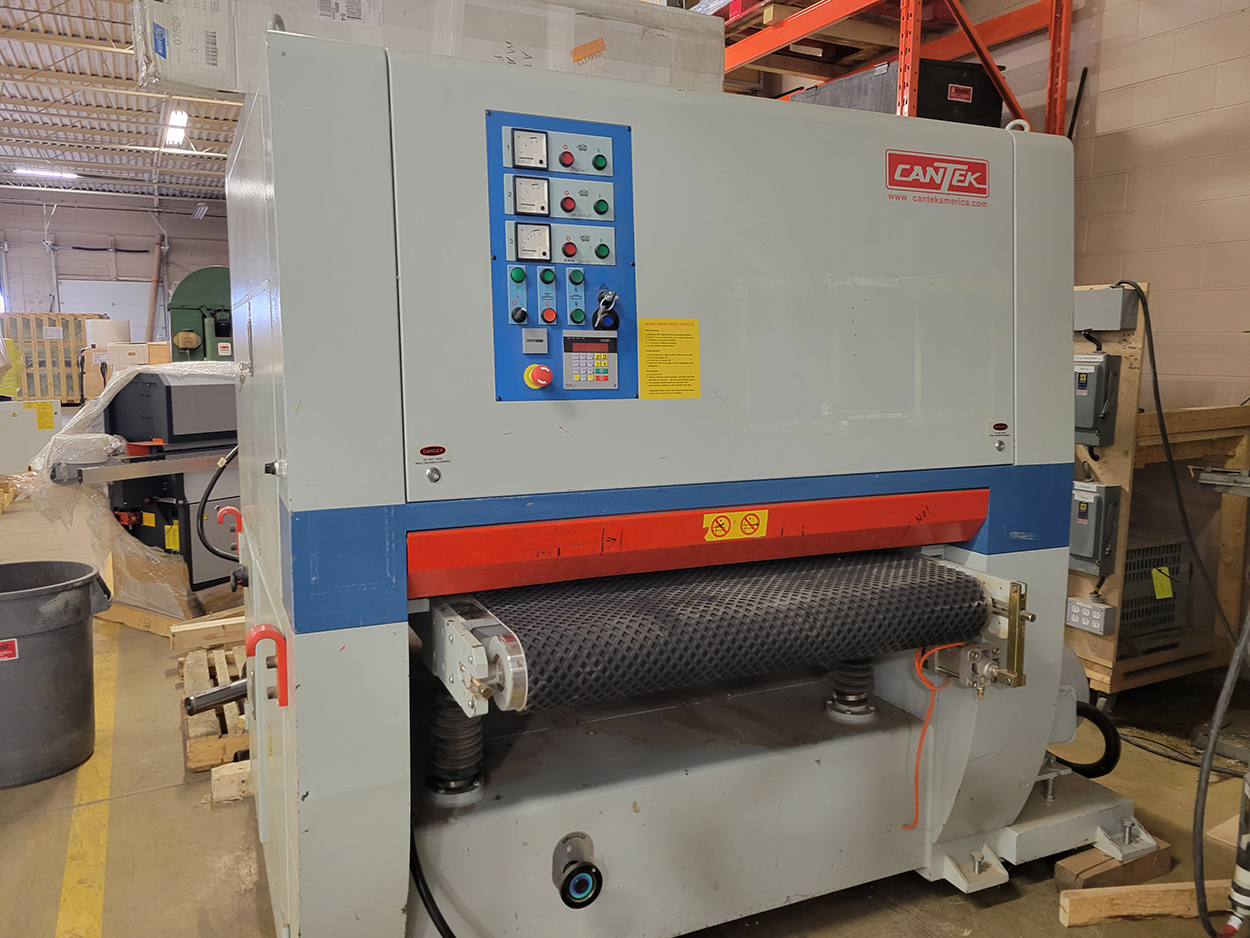

Centralized Control Panel

• The central control panel is conveniently located to assist the operator to control the machine with ease – Electrics to CSA/UL Standards

Brushing Roller

• To clean panel for efficient dust collection on outfeed of machine

Hold Down Pressure System

• Infeed rubber pressure roller
• Sectional infeed shoe, spring loaded, before cutterhead
• Solid pressure shoe, spring loaded, before contact drum
• Solid pressure shoe, spring loaded, before and after combination head
• Outfeed rubber pressure roller
