ITEM 1 – FI17 Infeed Table

Working size:
Length: 700mm (27 ½”)
Width: 450mm (17 ½”)
W/3p 1/2hp Motor for working table

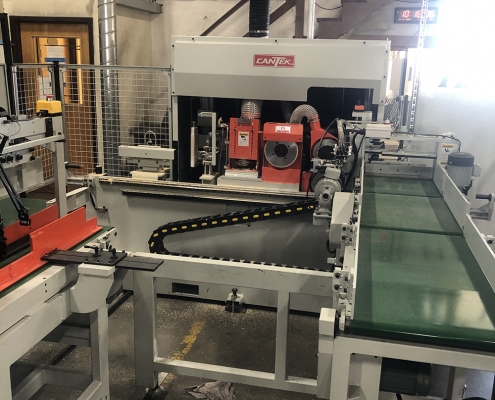

ITEM 2 – F-C03NPM Spin Table Finger Shaper (with Injection Gluing System)

Table size: 450m (17 ½”)
Working size:
Length: 120~700mm (4.7”~27 ½”)
Width: 20~60mm (.78”~2.36”)
Thickness: 30~150mm (1.18”~5.9”)
W/3p 15hp motor for main spindle
W/3p 5hp motor for trimming saw
W/3p 1hp motor x 2 (Top and Bottom) for Scoring Saw Unit
W/3p 1/2hp motor x 2 for Infeed and Outfeed Table
W/glue applicator: Injection type (Using PVAc Glue Only!)
W/Saw blades
W/Finger cutters – 10 pieces
Working Speed: Max. 1~2 cycles/min.

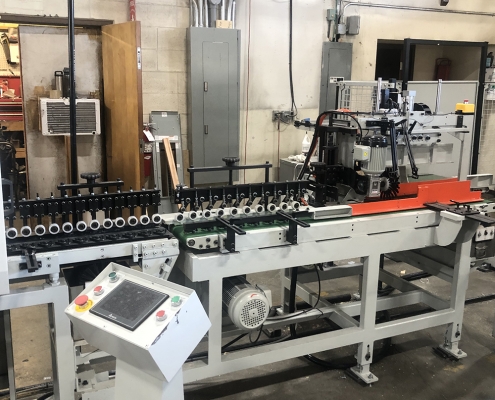

ITEM 3 – D03 Roller Table

Working size:
Length: 700mm (27 ½”)
Width: 450mm (17 ½”)
W/3p 1hp feed drive motor
W/3p 2hp outfeed drive motor
W/3p 1/8hp brush roller drive motor
W/3p 400W servo motor

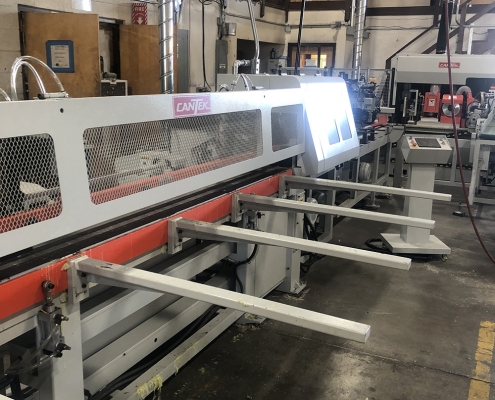

ITEM 4 – F-A07N Single Stage Auto Infeed Finger Assembler

Working size:
Length (maximum): 2500mm (98”)
Width:  30~150mm (1.18”~5.9”)
Thickness: 20~60mm (.78”~2.36”)
W/3p 1hp feed motor x 2
W/3p 5hp motor for cut-off saw
W/3p 3hp motor for hydraulic system
W/Saw blades
Every output – ONE fixed length at a time
